TYCO 25 pair Female Centronic Solder Connector With 90° Plastic Cover Certificated UL

Name: TYCO 25 pair Female Centronic Solder Connector With 90 Plastic Cover Certificated UL
Brand: FUYCONN
Price: 1 USD

China TYCO 25 pair Female Centronic Solder Connector With 90° Plastic Cover Certificated UL wholesale

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUY57053A

MOQ : 10pcs

Price : Negotiable

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Product name : centronic solder connector

gender : female connector

pitch : 2.16mm pitch

color : grey

housing : 90 degree plastic cover

contact material : brass

insulation material : PBT

Contact Now

FUY57053A 90 Degree Plastic Solder Cup TYCO 25 pairs Centronic Connector 50 Pin Female Receptacle

This type of connector got its name from the Centronics Corporation, a manufacturer based in Nashua, New Hampshire. Back in the 1970's, Centronics made printers for use with computers. As computers and attached printers became more popular, the connector that they used became the de facto industry standard. The Centronics Corporation was purchased by Genicom (now TallyGenicom) in the 1980's, but their name lives on in this connector.

The Centronics connector has a plastic bar in the center of the connector body that holds the contact pins. The body of the connector is often black or blue in color.

Detail Description

Product Category: Centronic connector
Product Line: Champ Connector
Type: Centronic Solder Connector
Number of Terminal: 50 pin
Connector Style:Receptacle
Gender: Female
Centerline = 2.16mm [0.085in]
Insulator Color: Grey
Insulator Material: PBT
Contact pin Material: Brass
Shield Plating: Nickel
Mounting Option: Side Cable Exit (90°Cable Exit Angle)
Conver Style: 90 Degree Plastic Cover

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Terminal Option with various types
Connector and hood sold as complete assembly
Avilable in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics Solder Connector
Product Line:	Champ Connector
Gender:	Female
Connector Style:	Receptacle
Certerline :	2.16mm(0.85in)
Number of Position:	50 pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Insulator Color:	Grey
Shielded:	Yes
Orientation:	90 Degree Cable Exit
Mating connector lock:	Screws lock
Cover	Plastic

Materials

Contact Material:	Brass
Insulator:	PBT
Shell	PBT
Housing Material:	PBT

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, RJ21 Cable
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer

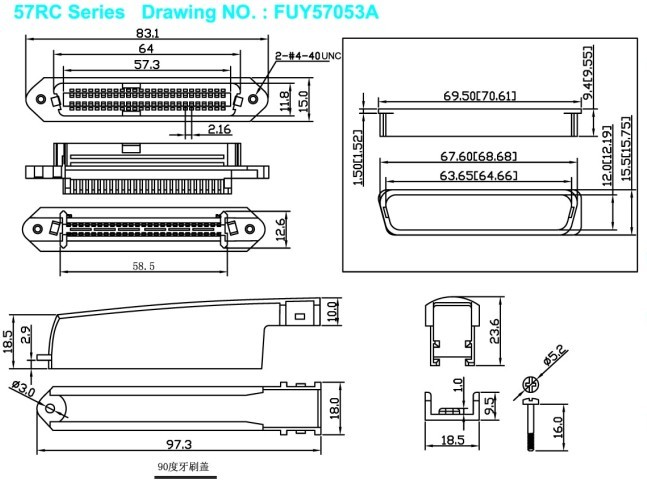

Technology Parameters

TYCO 25 pair Female Centronic Solder Connector With 90° Plastic Cover Certificated UL
