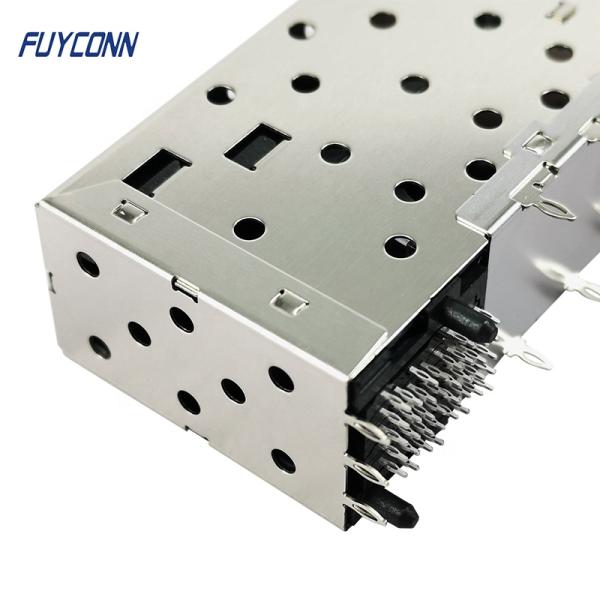

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Name: 2x1 2 Port SFP Connector 40 Pin Female PCB Mount with Light
Brand: FUYCONN
Price: 5 USD

China 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light wholesale

Model Number : FUYSFP017-28

Place of Origin : Guangdong, China

Brand Name : FUYCONN

MOQ : 100

Price : $5

Number of Ports : 2*1 dual ports

Number of Terminals : 40 pin

Connector Gender : Female

Color : Nick silver

Insulator Material : PBT

Contact Pin Material : Phosphor Bronze

Feet Type : solderless pin

Lightpipe : Yes

Current Rating : 1AMP

Withstanding Voltage : 500v for one minute

Insulator Resistance : 500MΩ min (at DC500V)

Contact Resistance : 35MΩ Max

Operation Temperature : -55°C to +105°C

Data Speed Rate : Up to 10Gb/s

Mounting Type : PCB

Contact Now

Product Description

2x1 2 port SFP+ Cage connector, Press-Fit Termination Small Form-factor Pluggable Plus 40 Position SFP+ Connector w/ Light

SFP (Small Form-factor Pluggable) module connector with various data speed rate is one of the major optical transceivers used for data communication. SFP connector was first introduced in early 2000 and designed to replace the previous gigabit interface converter (GBIC) connector in fiber optic and Ethernet high-speed networking systems. Based on the IEEE 802.3, SFF-8472 protocol specification, SFP module connectors has the ability to handle up to 4.25Gb/s with greater port density than the GBIC, which is why SFP is also known as mini GBIC. This allowed it to quickly become the connector of choice for system administrators who liked the idea of being able to significantly increase their output per rack. The SFP connectors can support Gigabit Ethernet, Fibre Channel, Synchronous Optical Network (SONET) and other communication standards.

To cater the need for faster transmission speed, the SFP+ Connector (or SFP10)was introduced in 2006, as an extension of the SFP connector. Based on IEEE802.3ae, SFF-8431, and SFF-8432 protocol specifications, the SFP+ Connector is designed to support data rates up to 10Gb/s. Compared with its predecessor SFP, the newly SFP+ can support Fibre Channel, 10GbE, SONET, OTN, and other communication standards. The SFP+ is similar in size to the SFP connector. And the primary difference between an SFP and a SFP+ is their transmission speed. It is noticeable that SFP/SFP+ Connector are both copper and optical.

Product Feature
1. Product Name:	SFP Connector
2. Product Line:	Small Form-factor Pluggable
3. Connector Gender:	Female Centronic Connector
4. Contact Type	Small Form-factor Pluggable
5. Number of Position:	40pin
6. Ports:	2*1 2 Ports
7. Contact Material:	Phosphore Bronze
8. Finish:	Nickel Silver
9. Insulation Material:	PBT
10. Lightpipe	Yes

Electrical Specifications
1. Current Rating:	1AMP
2. Withstanding Voltage:	500v for one minute
3. Insulator Resistance:	500MΩ min (at DC500V)
4. Contact Resistance:	35MΩ Max
5. Operation Temperature:	-55°C to +105°C

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Application

1, Networking equipment

2, Router/Switch

3, Data/Communications

4, High-end servers

5, Networking

6, Telecommunications

7,Switches

8,Telecommunications hardware

9,Fibre Channel and Gigabit Ethernet

10, Servers

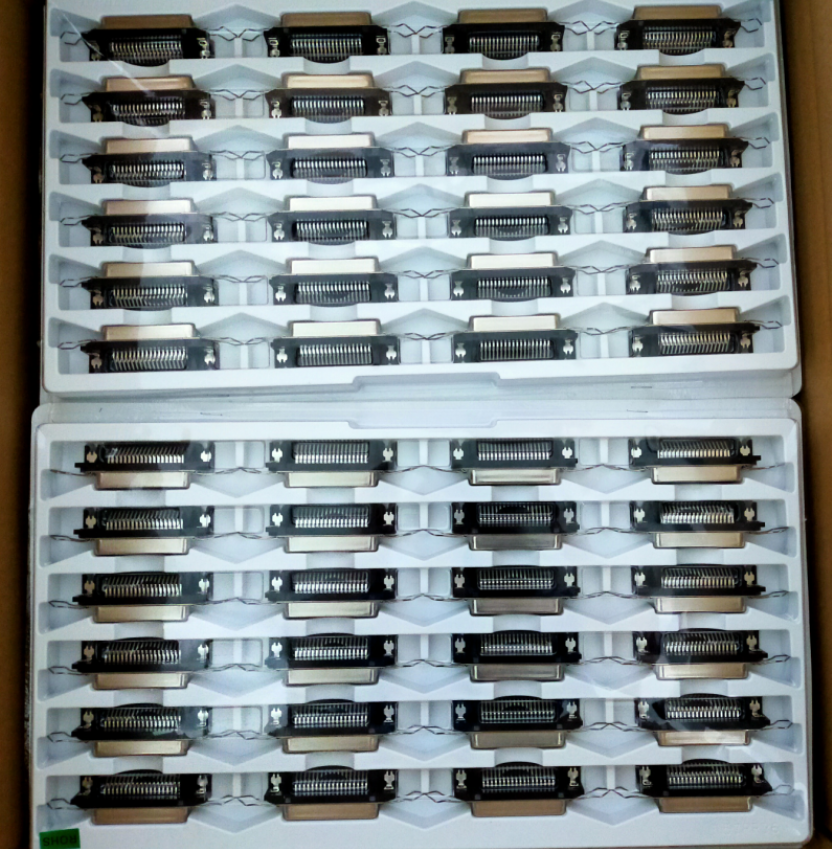

Strong Package

1, Vacuum Tray

2, PE Bag

3, Take strong bags/boxes/cartons

4, PE Bag + Strips

Company Profile

Dongguan Fuyconn Electronics Co,. Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you choice.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.

Why Choose Us

1, 16 years Centronic Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
